Product Detail:

1. The video coding format for the second generation h. 264 , four ways D1 of real-time video, four ways audio synchronization, four ways independent model alarm input. Support 6 (video playback, work, the cell phone, monitoring, net menu operation, backup) operation, support the number four D1 synchronous playback.
2. Network function is very good, the built-in PPPOE agreement and dynamic domain name; Support UPNP, automatic port mapping; Support electronic amplification; Preview the paint of paint, etc.
3. Three streaming technology (video, CIF nets pass, QCIF phone network),support the mobile phone monitoring, able to  as your wishes,the all things under your control.
Support free domain name, the most simple set of networking .
4. USB 2.0 backup, direct by U disk or USB hard drive to backup.

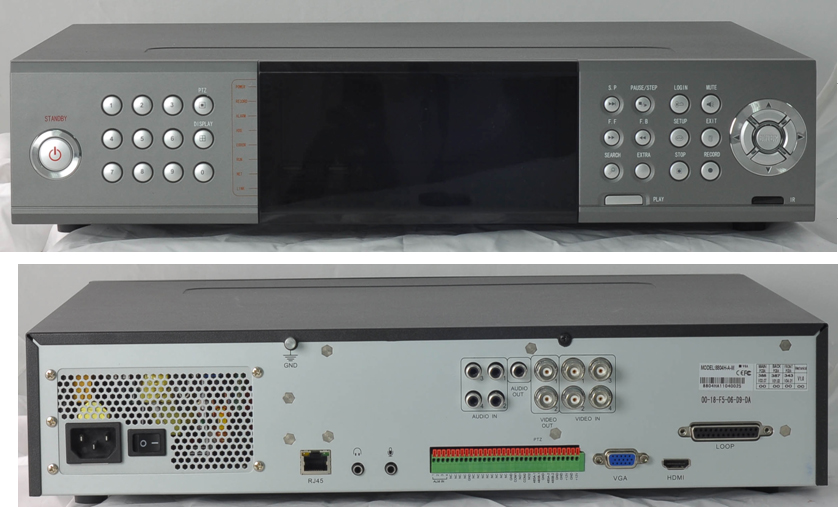

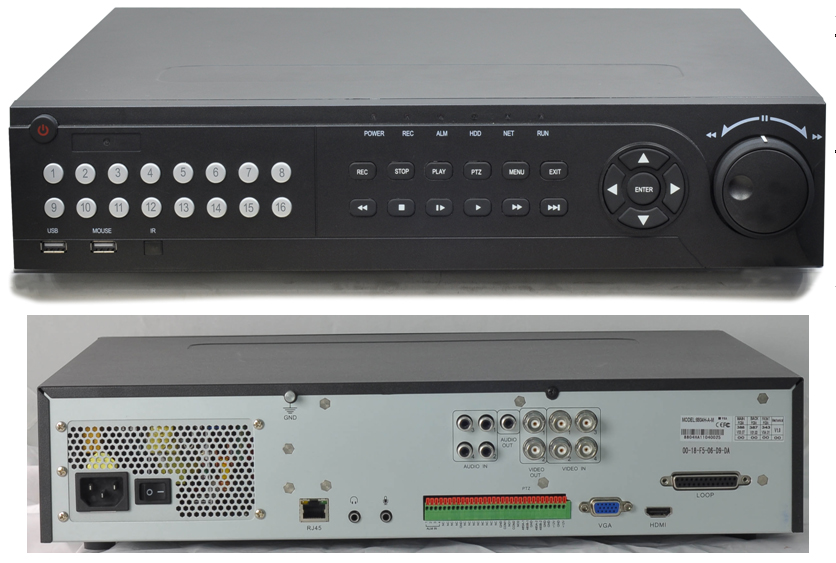

5.Ways D1, 2U case, support HDMI and 4 hard disk

SPECIFICATION:

Item	Device	Performance index
System	Language	English /Chinese
	GUI	Graphic menu
	password	user password, administrator password
Video	Video in	4/8/16ch composite video input 1.0V p-p,impedance75Ω,BNC
	Video out	2ch complex video output 1.0V p-p,impedance75Ω,BNC
	Video display	4ch:1/4channel switch 8ch:1/4/9 channel switch 16ch:1/4/9/16 channel switch
	Video standard	PAL,25f/s,CCIR625line,50scene NTSC,30f/s,CCIR525line,60scene
Audio	Audio input	16ch audio input, impedance 600Ω,RCA
	Audio output	1ch audio output, impedance 600Ω,RCA
	Basic electricity output	Linearity electricity
	Record style	Audio video recorded simultaneously
	Audio compression	ADPCM
Picture proceeding and store	Picture compression	H.264
	Resolution	D1/HD1/CIF
	Streaming style	ISO14496-10
	Audio style	ADPCM
	Video code rate	CIF: 384~768 Kbps(optional) HD1:512~1024Kbps(optional) D1:896~1280Kbps(optional)
	Audio code rate	32KB/s
	Data storage	Support mainstream SATA HDD
Alarm	Alarm input	4/8/16 alarm input
	Alarm output	2 alarm output
	Serial interface	Support 2 RS485
	Network interface	RJ45,1000M
USB	Mouse	USB1.1
	Thumb drive	USB2.0
VGA	VGA output	Support 800x600,1024x768,1280x1024,1366x768, 1440 x900 resolution
HDMI	HDMI output	Support 720P,1080I,1080P
Software	PC playback	Playback video file
	Software upgrade	Support USB firmware upgrade
Others	Voltage input	AC:110~240V
	Power	16W  without HDD
	Working temperature	-10----50℃
