Key Features:
* Double layer of Die-cast Aluminum sell install easily and quickly, can dissipate heat more sufficiently. Black inner shell makes sharper monitor
* Be compatible with common cassette mechanism of camera, like SONY, HITACHI, LG and other famous brands with high resolution
* Running smoothly with low speed, subwoofer noise and no image dithering
* 64 preset positions.
* 1 Patrol tracking routs and 1 auto level scan routs.
* Variable rotation(pan 0 ～ 80º/s ;tilt 0 ～ 40º/s); Auto level scan
* Continuous 360 º rotations in Omni-directions with no fade zone; Rotation speed can be adjusted by tilting angle of the joystick
* Auto flips with vertical 180 º in Omni-directions, no fade zone.
* RS485 integrated various of protocols, PELCO-D,PELCO-P etc
* 3 class lightning defend, built in 3000V lightning proof, surge resistant
* IP 66 outer cover with all day protection; Built-in auto thermostatic control system
Specification:
|
Electrical specifications |
| Power Input |
AC24V/2A (no identity "+"or "-") |
| Power Consumption |
36W |
| Settings: |
| Decoder |
Built-in |
| Electric machine |
Excellent stepping motor |
| Preset Position |
64 presets |
| Left&Right Rotation Range |
360°Continuous Rotation |
| Left&Right Speed |
0.1°－80°/S |
| Up&Down Rotation Range |
90°Vertical, 180°Auto flip |
| Up&Down Speed |
0.1°－40°/S |
| Control Method |
RS485 |
| Protocol |
Pelco-P/D etc |
| Baud rate |
2400bps/4800bps/9600bps/19200bps |
| Working environment: |
| Working Temperature |
Indoor:0ºC ~ 50ºC,Outdoor:-40ºC ~60ºC |
| Level of Protection |
IP66 Shell, Lightning Proof, Surge Resistant |
| Physical: |

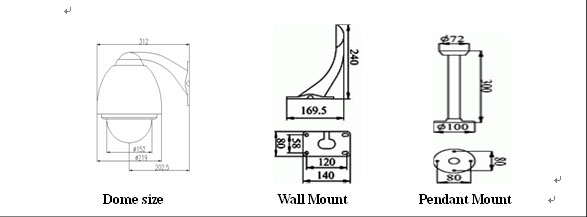

| Packing Dimension(mm) |
L355mm*W330mm*H410mm |
| Weight (kg) |
Wall Mount: 5.75kg Lifting Mount: 5.9 kg |
All products Warranty
- Brand New!
- Full 1 year replacement warranty & 30 days money back guarantee!
- This product is helpful for you and your home safety and saving your money
|
