Features & functions:
It's an ultra small high definition CCTV camera with excellent night vision.
Size is 11.5X11.5X17mm only, Weight is 2g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Specification:
| PICK UP ELEMENT |
Single chip 1/3 CMOS |
| SYSTEM |
NTSC |
PAL |
| NUMBER OF PIXEL |
NTSC 656 H 492 V |
PAL 786H 576V |
| IMAGE SIGNAL PROCESS |
Digital Signal Processing System |
| SENSOR DIMENSION |
4.75mmH3.55mmV |
| HORIZONTAL RESOLUTION |
Approximately 520TV Lines |
| SCANNING SYSTEM |
2 1 Interlace |
| SENSITIVITY |
0.008Lux/F1.2 |
| LENS & VIEW ANGLE |
0.5mm F2.0 /55 |
| S/N RATIO |
52dB |
| ELECTRONIC SHUTTER |
OUT 1/60 S TO 1/100000 S |
OUT 1/50 S TO 1/100000 S |
| AUTO GAIN CONTROL |
OUT |
| WHITE BALANCE CONTROL |
OUT |
| BACK LIGHT COMPENSATION |
OUT |
| VIDEO OUT |
1.0V p-p/75ohm |
| AUDIO OUT |
1.0V p-p/1Kohm |

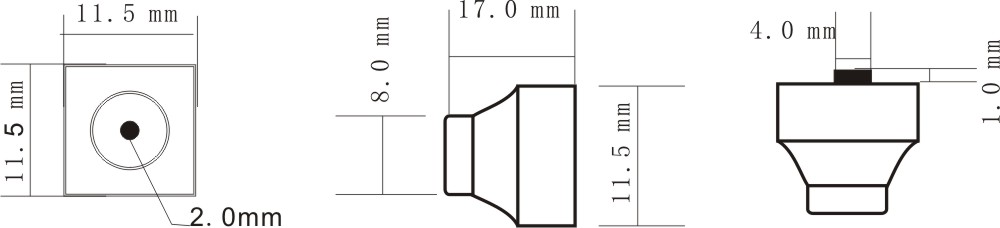

| SIZE (L x W x H) |
11.5mm x 11.5mmM x 17mm |
| WEIGHT |
2g |
| WORK CURRENT |
72mA |
| POWER REQUIREMENT |
DC 3.3V-6V |
| OPERATING TEMPERATURE |
- 10 C ~ +50 C less than 90% RH |
| Connection |
PIN1-Red DC5V PIN2-Black GND PIN3-Yellow VIDEO OUT PIN4-white AUDIO OUT |
Package:
* 1 Mini camera
* 1 AC Adapter

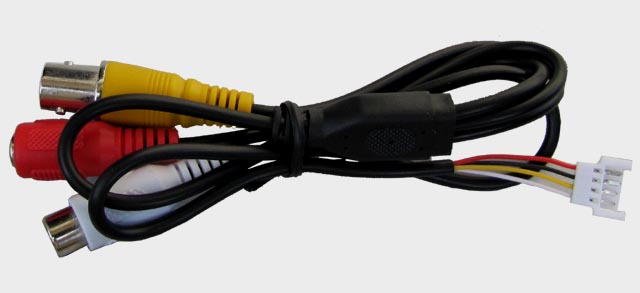

* 1 RCA/BNC cable (Only one cable, if no choice, we will ship at random)
All products Warranty
- Brand New!
- Full 1 year replacement warranty & 30 days money back guarantee!
- This product is helpful for you and your home safety and saving your money
|
