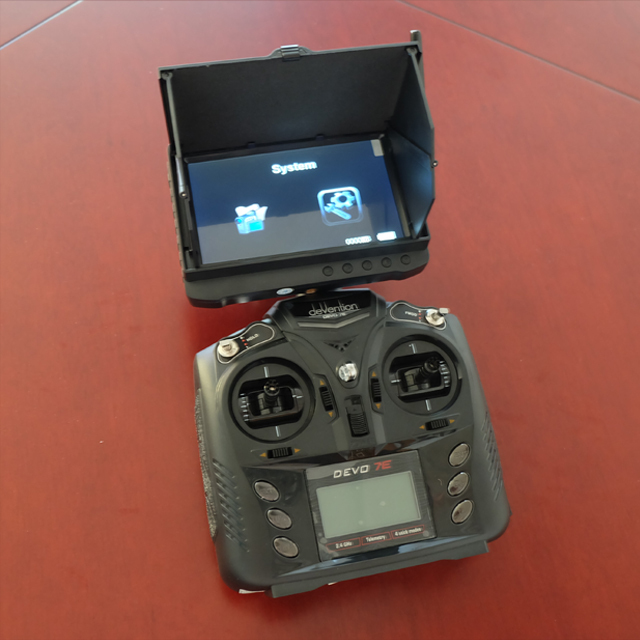

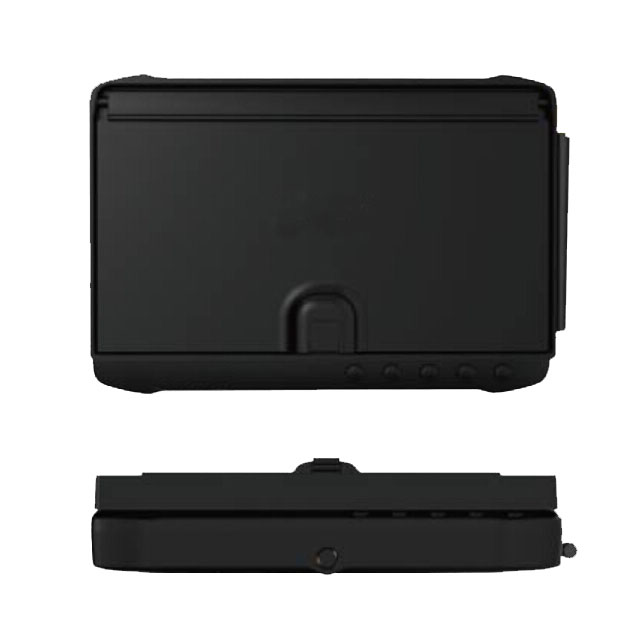

1.2GHz 5inch Mini Wireless Camera DVR Wireless FPV Monitor With Sunshade
TEL12GDV is our latest hot FPV monitor DVR . It improved on the basis of MINISPYTP43H, which comes with delicated outward and practical function. This new mini wireless fpv dvr monitor added sunshade and auto scan & lock channels function, now it is a wonderful outdoor wireless monitor for FPV, RC hobby ,quadcopter and drones
Feature:
* 5" HD snow Remote control style FPV monitor, no screen,track your plane anytime,don't need to worry about lossing trace for blue screen;
* 24chs 1.2Ghz wireless receiver ,one monitor for multiple plane with different frequency;
* Press one button , then it begin to scan and lock channels Automically, so easy.
* Support 32GB SD card storage wireless fpv dvr- RC plane black box:record all details and amazing video moment.
* Professinal sunshade +3200mAh battery, 10hous working time ,enjoy your outdoor pleasure flying time.
* Unique outward, simple but Practical, the best 5" portable FPV receiver monitor and dvr all in one.
* Black fpv monitor or white one for optional, perfect match with dji,fatshark remote controller.
Specifications :
| Receiver |
1.2Ghz 24CHS
-102dB |
A1:1080 MHz; A2:1120MHz; A3:1160MHz; A4:1200MHz
A5:1240 MHz; A6: 1280MHz; A7:1320MHz; A8:1360MHz
B1:1080 MHz; B2:1120MHz; B3:1160MHz; B4:1200MHz
B5:1258 MHz; B6: 1280MHz; B7:1320MHz; B8:1360MHz
C1:1080 MHz; C2:1120MHz; C3:1160MHz; C4:1200MHz
C5:1010MHz; C6: 1040MHz; C7:1240MHz; C8:1280MHz |
| Antenna |
RF-SMA 4 Blade |
| Displayer |
Screen size |
5 inch LCD screen |
| Resolution |
800 X 480 Pixel |
| Contrast |
500:01:00 |
| Brightness |
350 cd/M2 |
| Recorder |
Storage |
TF card 1GB-32GB(optional) |
| Video compress |
MPEG-AVI 30fps |
| Language |
Multiple |
| AV IN |
TV system |
NTSC / PAL (for wired camera) |
| AV-OUT |
Output voltage |
3.6-4.2 V |
| Audio |
Speaker |
1W |
| Operating system |
PC |
Windows & Mac OS |
| Port |
USB 2.0 |
| Language |
Multiple |
| Power |
Current |
340MA-680MA |
| AC adapter |
DC 5V 2A |
| Built-in battery |
Li-battery 3200Mah |
| Standby time |
Wireless record |
>=9.5 hours(off-screen); |
| Wired record |
>=12 hours(off-screen); |

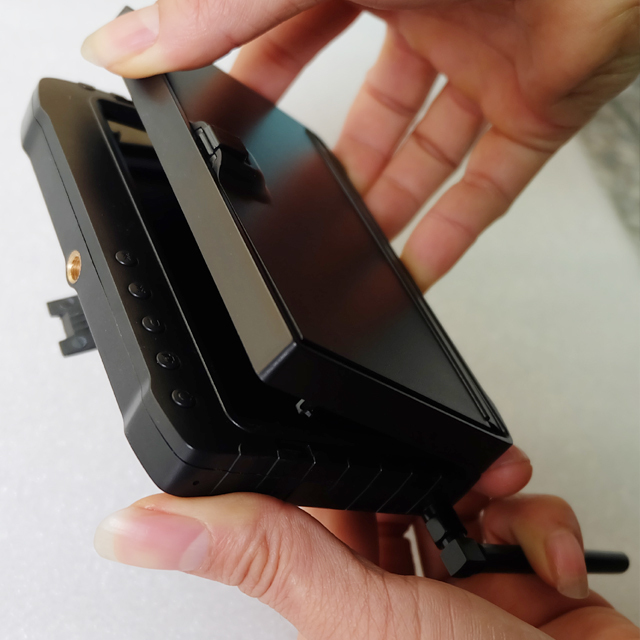

| Sunshade |
one button open |
Patend LCD hood |
| Dimension |
With sunshade |
131 x 90.5 x 28mm |
| Weight |
with sunshade |
260G |
Package:
* 1 x DVR;
* 1 x usb cable;
* 1 x AC adapter;
* 1 x AV-OUT cable;
* 1 x AV-IN cable;
Package:
* DVR x 1pcs ;
* usb cable x 1pcs ;
* AC adapter x 1pcs ;
* AV-OUT cable x 1pcs ;
* AV-IN cable x 1pcs ;
All products Warranty
- Brand New!
- Full 1 year replacement warranty & 30 days money back guarantee!
- This product is helpful for you and your home safety and saving your money
|
