Do You Want to monitor if any unauthorised people is outside your House?
Do You Want To Know Who Come To Your House ?

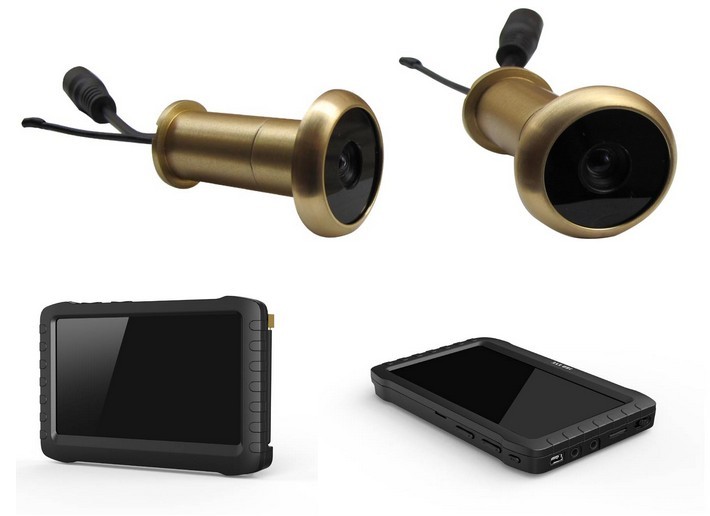

Get The Door Peephole Camera Kit Now!!
* No visible wires from the door's exterior, and exact same looking as original one,so the camera won't look suspicious;
* Pure brass materia, it's noble and durable;
* 5.8G no-interference frequency, 100m wireless range;
* Records video in high and low light(0.008lux) situations;
* Wide-angle(90°) lens makes it easy to capture footage of a corridor;
* 5-inch large screen DVR playback Video instantly without connecting to computer;
* Motion Detection Available : Record Only when there is movement detected outside the Door (Replaced CCTV 24 Hrs Monitoring & Protect Home From Robbery);
* No need any cable installation, just plug and play;
* Support SD Card(up to 32G) recording for any evidence needed.

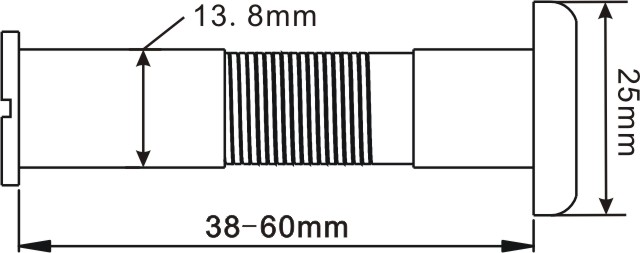

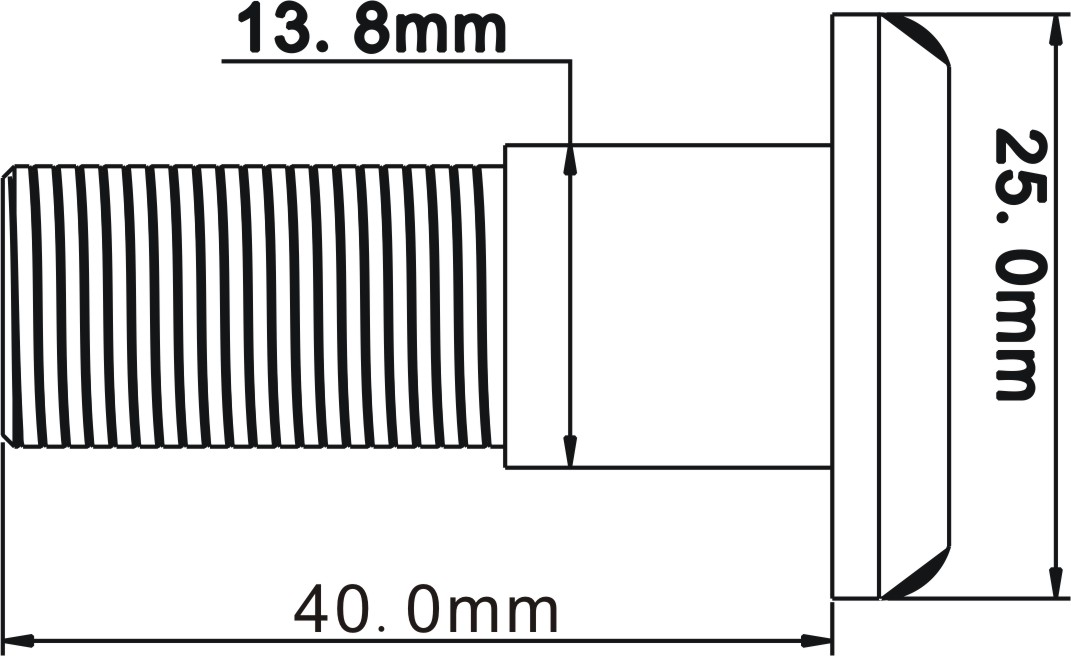

Outline Size of camera:
Specification:
* Camera:
| Working frequency |
G1-within 5.8G |
CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz |
Working Channel: 1 of 24 |
| G2-Beyond 5.8G |
CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz |
| G3-Within 5.8G |
CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz |
| Antenna |
External antenna |
| RF OUTPUT POWER |
25mW |
| TRANSMISSION RANGE |
100 meters |
| SENSOR DIMENSION |
NTSC：720（H）×480（V） |
PAL：720（H）×576（V） |
| HORIZONTAL RESOLUTION |
480TV Lines |
| SENSITIVITY |
0.008Lux/F1.2 |
| LENS & VIEW ANGLE |
0.5mm F1.2 / 90 ° |
| PEEPHOLE SIZE(L x D) |
38-60mm X 14mm |
| WEIGHT（g） |
20g |
| WORK CURRENT |
230mA |
| POWER REQUIREMENT |
DC 4V |
| OPERATING TEMPERATURE |
- 20°C ~ + 50°C ，Relative humidity 85﹪ |
* 5-in HD Mini DVR:
| Items |
Value |
|
Wireless Receiving |
Wireless freq. (1 of 3 groups) |
|
| Within 5.8G-A 8 channels |
CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz |
| Beyond 5.8G-B 8 channels |
CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz |
| Within 5.8G-C 8 channels |
CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz |
| Sensitivity |
-88dB |
| Receiving distance |
100 meters |
|
AV IN |
TV system |
NTSC / PAL |
| Output voltage |
3.6-4.2 V |
|
HD 5-inch LCD screen |
Active area |
108mm(W) X 64.8mm(H) |
| Resolution |
800 X 480 Pixel |
| Luminance for LCM |
200 cd/㎡ |
|
Cape clear 5-inch LCD screen |
Active area |
118mm(W) X 62.8mm(H) |
| Resolution |
480 X 272 Pixel |
| Luminance for LCM） |
300cd/㎡ |
|
Video |
Resolution |
720*576 / 640*480 |
| Video compress |
MPEG-AVI 30fps |
| Play format |
MPEG-AVI |
|
Audio |
Frequency |
20HZ-20KHz stereo |
| Earphone Output |
Left: 20MW+ right 20mW [16O](suit to largest volume) |
| Speaker |
1W |
|
Photo |
Format |
JPG/JPEG |
| Storage |
External SD card |
TF card 1GB-32GB（optional） |
| 32GB recording time |
10-32 hours |
| 1GB photos |
15625pcs |
| Operating system |
PC |
Windows & Mac OS |
| Port |
USB 2.0 |
| Language |
Multiple |
| Power |
Voltage |
DC 5V |
| Current(receiving mode) |
660MA |
| Current( recording mode) |
680MA |
| Current（recording with off-screen mode） |
340MA |
| AC adapter |
DC 5V 2A |
| Built-in battery |
Li-battery 3200Mah |
| Standby time |
Wireless record |
≥9.5 hours(off-screen); ≥5hours（on-screen） |
| Wired record |
≥12 hours(off-screen); ≥6hours（on-screen） *LED camera not included. |
| Size (L x W x H) |
131mm x 86mm x 18mm |
| Weight(g) |
205G |

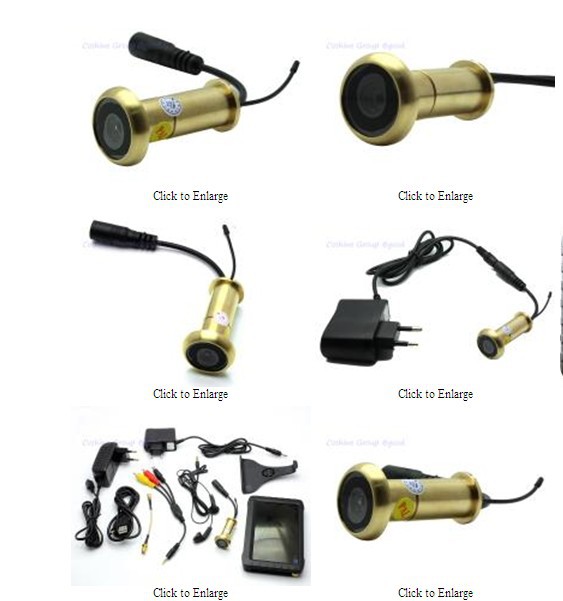

Package:
1*Wireless Door Peephole Camera;
1*AC Adapter
1*DVR
1*cable
1*usb cable
1*AV input cable
1*AV output cable
1*manual
All products Warranty
- Brand New!
- Full 1 year replacement warranty & 30 days money back guarantee!
- This product is helpful for you and your home safety and saving your money
|
