Features:
* 170degree wide view angle,3.6-24v wide voltage
* Small Size: easy to install into narrow room and slim tube, etc.;
* High resolution, high sensitivity, high SNR;
* Day & night dual mode auto switch;
* Low Illumination, Low Current and power consumption;
* CMOS sensor generation IV+DSP chip offer true color & HD video.
| PICK UP ELEMENT |
Single chip 1/4CMOS |
| SYSTEM |
NTSC |
PAL |
| NUMBER OF PIXEL |
NTSC:720(H)¡Á480(V) |
PAL:720(H)¡Á576(V) |
| SENSOR DIMENSION |
3.584mm(H)¡Á2.688mm(V) |
| HORIZONTAL RESOLUTION |
Approximately 480TV Lines |
| SENSITIVITY |
0.1Lux/F2.8 |
| LENS & VIEW ANGLE |
F2.8/ 170¡ã |
| S/N RATIO |
48dB |
| AUTO GAIN CONTROL |
OUT |
| WHITE BALANCE CONTROL |
OUT |
| BACK LIGHT COMPENSATION |
OUT |
| VIDEO OUT |
1.0V p-p/75ohm |
| AUDIO OUT |
1.0V p-p/1Kohm |
| WEIGHT |
8g |

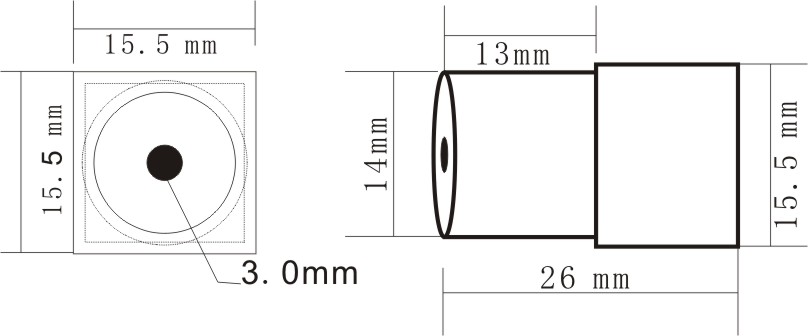

| SIZE(LXWXH) |
15.5X15.5X26mm |
| WORK CURRENT |
DC12V: 45mA DC5V: 95mA |
| POWER REQUIREMENT |
DC:3.6V-24V |
| OPERATING TEMPERATURE |
- 10¡ã C ~ +50¡ãC ,less than 90% RH |
| Connection |
PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=>White AUDIO |
Contents:
* mini camera X1;
* RCA BNC cable X1;
* AC adapter DC5V:X1
All products Warranty
- Brand New!
- Full 1 year replacement warranty & 30 days money back guarantee!
- This product is helpful for you and your home safety and saving your money
|
