3.6MM F1.2 90deg VOA 16 CHS 0.008Lux 5.8G Mini Wireless Camera

3.6MM F1.2 90deg VOA 16 CHS 0.008Lux 5.8G Mini Wireless Camera






Codnition:New
Model:SPY920BET
Salecode: SPY920BET
List Price:

Your price:




It adopts no-interference 5.8G frequency, which transmits 100 meters range. Moreover, it uses the high sensitive imaging device, which brings superior imaging capabilities . Its size is smaller than finger, which is suitable to install it into narrow room. Extremely low illumination(0.008lux), broad view angle(90deg), small size, wireless transmission, tiny weight( 10g), continuous working(AV power supply),  and easy installation . It is a good helper for home monitoring and burglar.

Features:

1. No-interference 5.8G frequency, no need to worry about interference from general 2.4G frequency;
2. 16 channels available, users can freely choose one when they use it;
3. 0.008LUX super low illumination, which can see clearly under dim light;
5. 90deg broad view angle
6. Low power consumption assures the long time working life;
7. 25mW transmitting power, which leads 100 meters wireless transmission range.

Use Method:

Connect it with power supply, it starts to work. At the same time, power on wireless receiver and choose corresponding channel to receive/record real time audio & video.

SPECIFICATIONS:

Working frequency

CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz; CCH7: 5745MHz; CH8: 5725MHz
CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz.
CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz

Audio Subcarrirer Level -28dBc
RF OUTPUT POWER 25mW
TRANSMISSION RANGE 100 meters
Audio Subcarrirer Freq.ncy 6.5MHz
SENSOR DIMENSION NTSC: 720(H) x 480(V) PAL: 720(H) x 576(V)
SENSITIVITY 0.008Lux/F1.2
LENS & VIEW ANGLE 3.6mm F1.2 / 90 deg

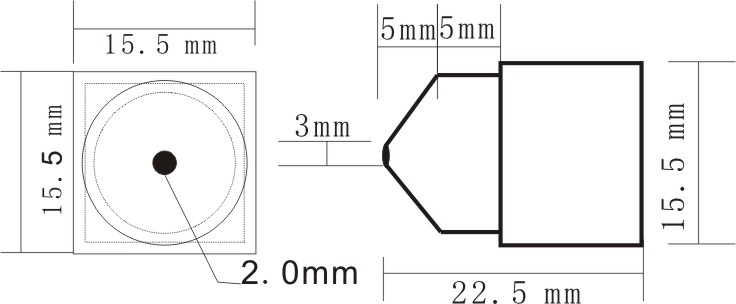

SIZE(L x W x H) 22.5 x 15.5 x 15.5 MM
WEIGHT(g) 10g
WORK CURRENT 230mA
POWER REQUIREMENT DC 4V
OPERATING TEMPERATURE - 20C ~ + 50C ,Relative humidity 85%

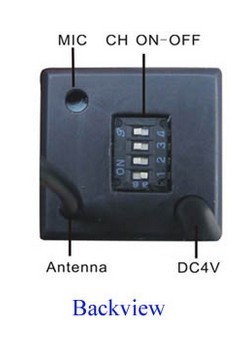

MODEL NO. & FREQUENCY:

wireless camera 5.8G wireless DVR
Channel Switcher CH Frequency Freq. group CH
1# ON 2# ON 3# ON 4# ON CH1 5865MHz 5.8G-A CH1
1# ON 2# OFF 3# ON 4# ON CH2 5845MHz 5.8G-A CH2
1# ON 2# ON 3# OFF 4# ON CH3 5825MHz 5.8G-A CH3
1# ON 2# OFF 3# OFF 4# ON CH4 5805MHz 5.8G-A CH4
1# ON 2# ON 3# ON 4# OFF CH5 5785MHz 5.8G-A CH5
1# ON 2# OFF 3# ON 4# OFF CH6 5765MHz 5.8G-A CH6
1# ON 2# ON 3# OFF 4# OFF CH7 5745MHz 5.8G-A CH7
1# ON 2# OFF 3# OFF 4# OFF CH8 5725MHz 5.8G-A CH8
1# OFF 2# ON 3# ON 4# ON CH9 5705MHz 5.8G-B CH1
1# OFF 2# OFF 3# ON 4# ON CH10 5685MHz 5.8G-B CH2
1# OFF 2# ON 3# OFF 4# ON CH11 5665MHz 5.8G-B CH3
1# OFF 2# OFF 3# OFF 4# ON CH12 5645MHz 5.8G-B CH4
1# OFF 2# ON 3# ON 4# OFF CH13 5885MHz 5.8G-B CH5
1# OFF 2# OFF 3# ON 4# OFF CH14 5905MHz 5.8G-B CH6
1# OFF 2# ON 3# OFF 4# OFF CH15 5925MHz 5.8G-B CH7
1# OFF 2# OFF 3# OFF 4# OFF CH16 5945MHz 5.8G-B CH8

3.6MM F1.2 90deg VOA 16 CHS 0.008Lux 5.8G Mini Wireless Camera
3.6MM F1.2 90deg VOA 16 CHS 0.008Lux 5.8G Mini Wireless Camera
