32CHs  Wireless Transmission Kit Features:

*  All-in-one 32CHs mini wireless transmitter
*  Built-in with 25mW 32CHs 5.8Ghz transmitter.
*  It covers over 100 meters with excellent video and audio.
*  Wide view angle lens: 90°or 120° for optional.
*  7V-24V wide working voltage.(Support 2S-6S lipo battery)
*  Ultra-light weight, only 7 gram.
*  No need troublesome cables connecting, just power it up to use.

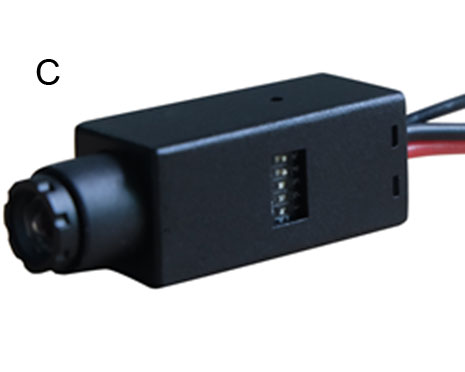

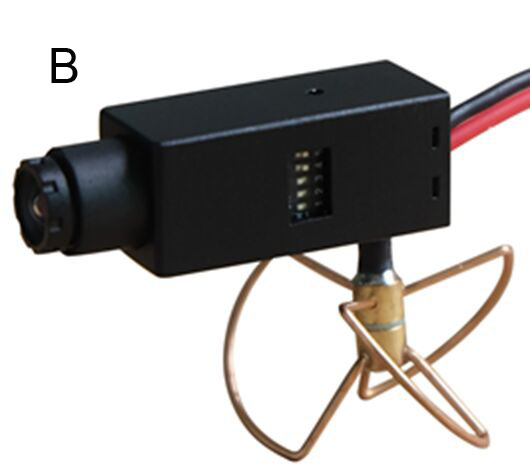

Note: there are have three model cameras : A model, B model , C model. If no mark ,default model A .

Specifications:

No.	Item	Specifications			Unit	Test Condition
		Min.	Typ.	Max.
RF Output Characteristic
1	Tx Power	13	14	15	dBm
2	Audio subcarrier Level	-26	-28	-30	dBc	A/V (Video and Audio Index)
3	AL (Audio Subcarrier Freq. NCY)	6470	6500	6530	KHz
Camera Characteristics
1	PICK UP ELEMENT	Single chip 1/4CMOS
2	NUMBER OF PIXEL	NTSC: 720(H)×480(V)PAL: 720(H)×576(V)
3	HORIZONTAL RESOLUTION	Approximately 520TV Lines
4	SENSITIVITY	0.008Lux/F1.2
5	LENS & VIEW ANGLE	0.5mm F1.2 90 °/0.5mm F3.0 120°

No.	Item	Specifications			Unit	Test Condition
		Min.	Typ.	Max.
Audio Characteristics
1	Freq Responsez	120-3400Hz
2	SNR	78db
DC Characteristics
1	Supply Voltage	7V	12V	24V	VDC
2	Current sddd(( sConsumption		88		mA
Dimension
1	Size(LWH)	41mmX 13mmX 13.5mm
2	Weight	TE93A/B :10g TE93C:7g
3	Temperature	-10℃ ~ +60℃
4	Connection	PIN1-> Red DC5V PIN2-> Black GND
