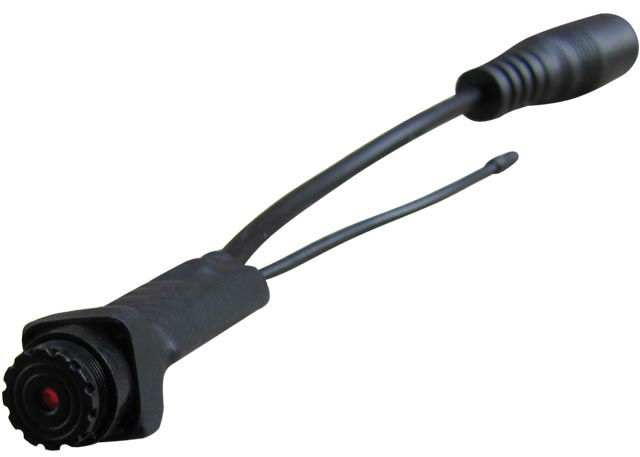

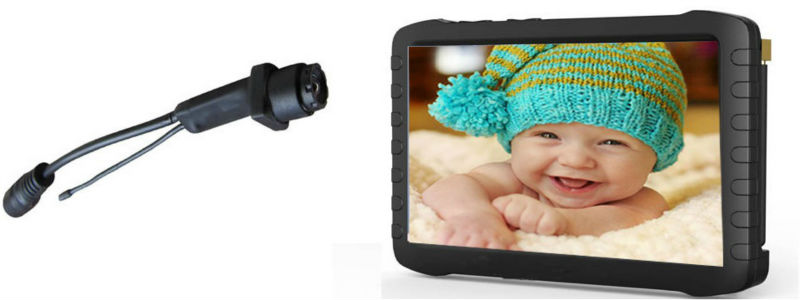

50deg Wireless Mini Camera + 5.8GHz Wireless 5inch HD DVR Protable Monitor Receiver

50deg Wireless Mini Camera + 5.8GHz Wireless 5inch HD DVR Protable Monitor Receiver






Condition:New
Model:MINISTE806B
Warranty 1 year !
Salecode: MINISTE806B
List Price:

Your price:




The MINISTE806B Kit adopts no-interference 5.8G frequency, which transmits 100 meters range. Moreover, it uses the high sensitive imaging device, which brings superior imaging capabilities.Its size is smaller than finger, which is suitable to install it into narrow room. Extremely low illumination(0.008lux), broad view angle(50deg),small size, wireless transmission, tiny weight( 8g), continuous working(AV power supply),  and easy installation . It is a good helper for home monitoring and burglar.

How to use:

1. Connect camera with power supply, it starts to work. At the same time, power on DVR and set it in the same channel with camera.

2. Then real time audio & video starts to tranmit from camera to DVR for view or recording or taking pictures.

It is very easy to use , just connect the camera to AV power supply, it starts to continuous working. Just plug & play!

Note: This camera has one working channel. Please select the model with your requested frequency;



Feature:

*  No-interference 5.8G frequency, up to 24 channels for choice;
*  Tiny size (smaller than finger);
*  Tiny weight (only 8g);
*  0.008LUX super low illumination, which can see clearly under dim light;
*  50 degree lens!
*  Low power consumption assures the long time working life;
*  25mW transmitting power, which leads 100 meters wireless transmission range.

50deg Wireless Mini Camera + 5.8GHz Wireless 5inch HD DVR Protable Monitor Receiver
50deg Wireless Mini Camera + 5.8GHz Wireless 5inch HD DVR Protable Monitor Receiver
50deg Wireless Mini Camera + 5.8GHz Wireless 5inch HD DVR Protable Monitor Receiver

Camera Specification:

Working frequency G1-within 5.8G CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz Working Channel: 1 of 24
G2-Beyond 5.8G CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
G3-Within 5.8G CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz
Antenna External antenna
RF OUTPUT POWER 25mW
TRANSMISSION RANGE 100 meters
SENSOR DIMENSION NTSC:720(H) x 480(V) PAL:720(H) x 576(V)
HORIZONTAL RESOLUTION 480TV Lines
SENSITIVITY 0.008Lux/F1.2
LENS & VIEW ANGLE 0.5mm F1.2 /50deg

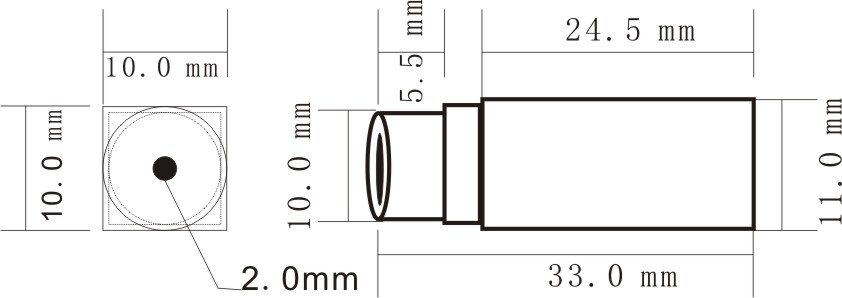

SIZE(L x W x H) 33.0mm x 10.0mm x 10.0mm
WEIGHT(g) 8g
WORK CURRENT 230mA
POWER REQUIREMENT DC 4V
OPERATING TEMPERATURE - 20C ~ + 50C , Relative humidity 85%


50deg Wireless Mini Camera + 5.8GHz Wireless 5inch HD DVR Protable Monitor Receiver

50deg Wireless Mini Camera + 5.8GHz Wireless 5inch HD DVR Protable Monitor Receiver

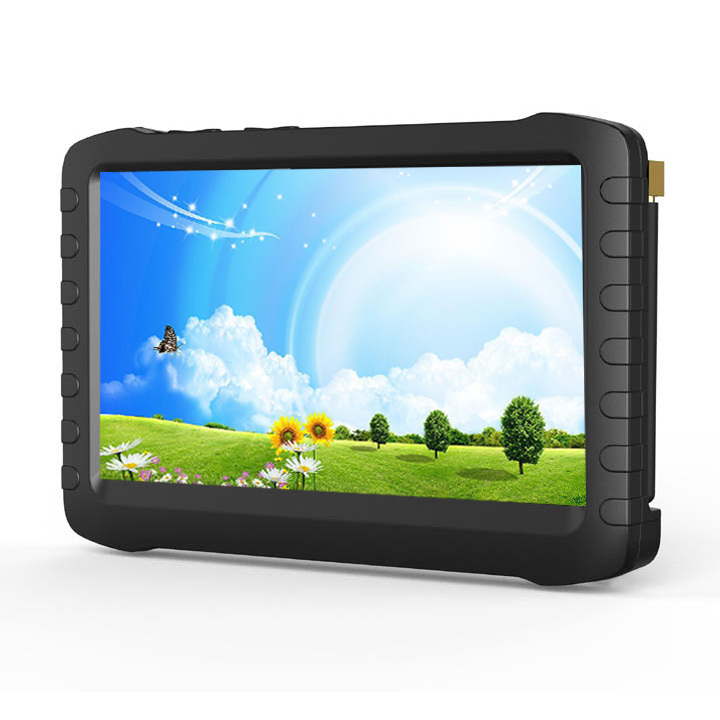

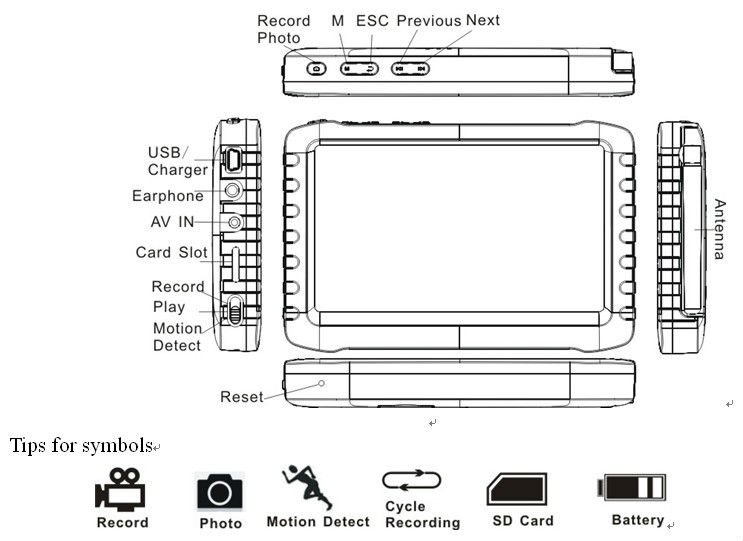

Wireless DVR Feature:

* Mini size and portable recorder with fashionable & new design;
* 5-inch super large HD screen (800X480pix), which provides clear and smooth image;
* Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
* Supports storage up to 32G TF card, which records up to 32 hours;
* 8 channels auto/manual switch;
* Folding hidden external antenna assures excellent wireless receiving;
* Supports AV IN function: receiving signal from wired cameras;
* Photo function: it can take, review & store pictures;
* Supports intelligent motion detect video recording;
* Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
* Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness;
* Support power-saving mode: automatic shutdown, automatic off-screen;
* Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
* It's of high compatibility, which supports almost all computer operating system, including MAC;
* Supports multi-language.

Wireless DVR Receiver Specification:

Items Value
Wireless Receiving Within 5.8G-A (8 channels) CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
Within 5.8G-B (8 channels) CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
Beyond 5.8G-C (8 channels) CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz.
CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz
Sensitivity -92dB
Receiving distance 100 meters
AV IN TV system NTSC / PAL
Output voltage 3.6-4.2 V
HD 5-inch LCD screen Active area 108mm(W) X 64.8mm(H)
Resolution 800 X 480 Pixel
Luminance for LCM 200 cd/M2
Cape clear 5-inch LCD screen Active area 118mm(W) X 62.8mm(H)
Resolution 480 X 272 Pixel
Luminance for LCM 300cd/M2
Video Resolution 720*576 / 640*480
Video compress MPEG-AVI 30fps
Play format MPEG-AVI
Audio Frequency 20HZ-20KHz stereo
Earphone Output Left: 20MW+ right 20mW [16O](suit to largest volume)
Speaker 1W
Photo Format JPG/JPEG
Storage External SD card TF card 1GB-32GB(optional)
32GB recording time 10-32 hours
1GB photos 15625pcs
Operating system PC Windows & Mac OS
Port USB 2.0
Language Multiple
Power Voltage DC 5V
Current(receiving mode) 660MA
Current( recording mode) 680MA
Current(recording with off-screen mode) 340MA
AC adapter DC 5V 2A
Built-in battery Li-battery 3200mAh
Standby time Wireless record >=9.5 hours(off-screen);>=5hours(on-screen)
Wired record >=12 hous(off-screen);>=6hours(on-screen) *LED camera not included.
Size (L x W x H) 131mm x 86mm x 18mm
Weight(g) 205g


50deg Wireless Mini Camera + 5.8GHz Wireless 5inch HD DVR Protable Monitor Receiver



Package:

* DVR * 1pcs
* Camera * 1pcs
* User Manual * 1pcs
* Stereo earphone * 1pcs
* USB Cable * 1pcs
* AC Adapter * 1pcs
* Back holder for installation * 1pcs
