520TVL Mini CCTV Camera 90degree 0.008Lux View Angle Audio

520TVL Mini CCTV Camera 90degree 0.008Lux View Angle Audio






Condition:New
Model:SPY5209DAV
Salecode: SPY5209DAV
List Price:

Your price:




Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Features :

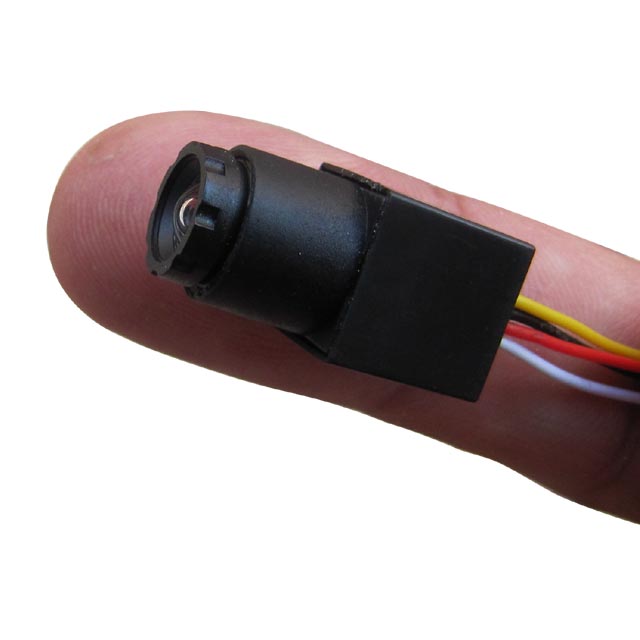

It's an ultra small  high definition housed CCTV camera with excellent night vision.
Size is 10.5X11.5X22.5mm only, Weight is 4g! Ready housed camera is very convenient & easy
to install and conceal.Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.90degree wide view angle provides broad surveillance field.
Full TV system. Applicable worldwide.


520TVL Mini CCTV Camera 90degree 0.008Lux View Angle Audio

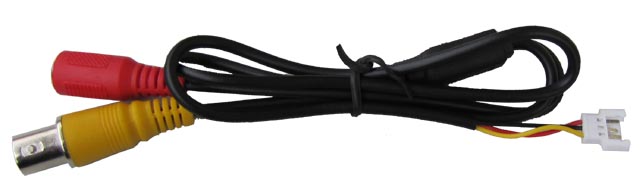

Ready AV/BNC cable and power supply cable. Just plug & play!



520TVL Mini CCTV Camera 90degree 0.008Lux View Angle Audio
520TVL Mini CCTV Camera 90degree 0.008Lux View Angle Audio
520TVL Mini CCTV Camera 90degree 0.008Lux View Angle Audio

Specification:

PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC:656(H)¡Á492(V) PAL:786(H)¡Á576(V)
IMAGE SIGNAL PROCESS Digital Signal Processing System
SENSOR DIMENSION 4.75mm(H)¡Á3.55mm(V)
HORIZONTAL RESOLUTION Approximately 520TV Lines
SCANNING SYSTEM 2:1 Interlace
SENSITIVITY 0.008Lux/F1.2
LENS & VIEW ANGLE 0.5mm F2.0 /90 ¡ã
S/N RATIO 52dB
ELECTRONIC SHUTTER OUT (1/60 S TO 1/100000 S) OUT (1/50 S TO 1/100000S)
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
AUDIO OUT 1.0V p-p/1Kohm

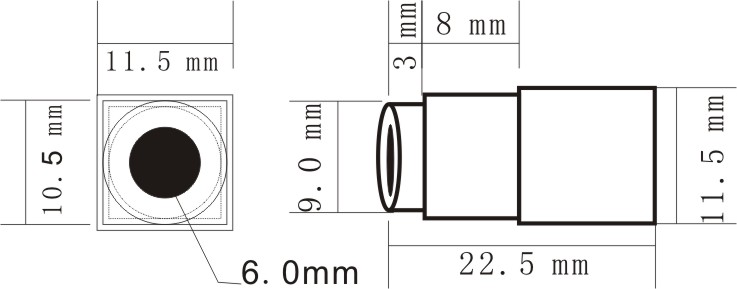

SIZE (L x W x H) 10.5x11.5x22.5mm
WEIGHT 4g
WORK CURRENT 70mA
POWER REQUIREMENT DC 3.6V-24V
OPERATING TEMPERATURE - 10¡ã C ~ +50¡ãC £¬less than 90% RH
Connection PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT PIN 4¡ªWhite AUDIO OUT

Package:
1 * Mini camera ;
1 * RCA/BNC cable;
1 * AC adapter

All products Warranty

  • Brand New!
  • Full 1 year replacement warranty & 30 days money back guarantee!
  • This product is helpful for you and your home safety and saving your money
