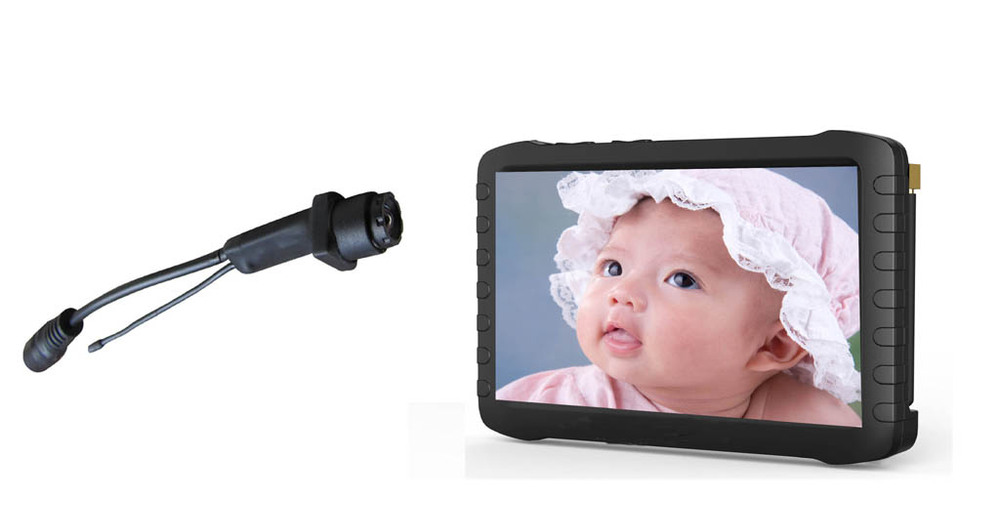

The MINISTE806A wireless mini camera and dvr kit includes a very tiny wireless camera and a 5-inch LCD DVR, which adopt no-interference 5.8G frequency.It transmits 100 meters range. The size of camera is smaller than finger, only 8G!!!! It is suitable to install it into narrow and hard-to-reach room. Users can view the instant video on this 5 inch HD screen. They also can record videos and take pictures.Motion detect & loop recording are available for more convenience use.It is a good helper for safe & security.

Features:

*  No-interference 5.8G frequency, no need to worry the interference from general-used 2.4G frequency;
*  Camera has up to 24 channels for choice;
*  Tiny size camera (smaller than finger), and tiny weight (only 8g);
*  0.008LUX super low illumination, which can see clearly under dim light;
*  90° and 50° view angle for your choice;
*  Low power consumption assures the long time working life;
*  25mW transmitting power, which leads 100 meters wireless transmission range;
*  High resolution 5-inch large screen DVR playback clear video instantly without connecting to computer;
*  Motion Detection Available : Record only when there is movement detected(Replaced CCTV 24 Hrs Monitoring );
*  No need any cable installation, just plug and play;
*  Support SD Card(up to 32G) recording for any evidence needed.

How to use:

1. Connect camera with power supply, it starts to work. At the same time, power on DVR and set it in the same channel with camera.

2. Then real time audio & video starts to tranmit from camera to DVR for view or recording or taking pictures.

It is very easy to use , just connect the camera to AV power supply, it starts to continuous working. Just plug & play!

Note: This camera has one working channel. Please select the model with your requested frequency;

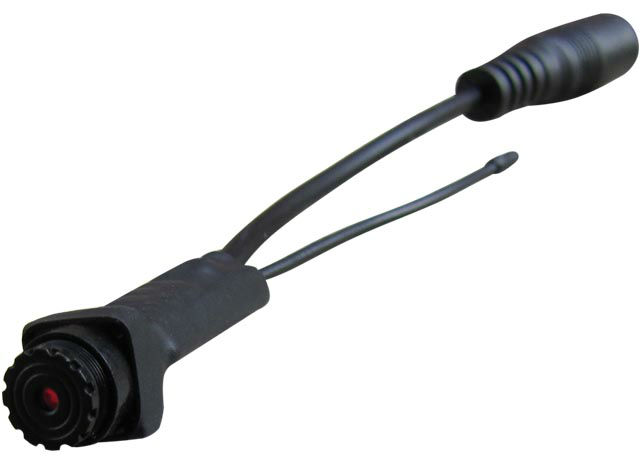

Wireless Mini Camera SPECIFICATION:

Working frequency	G1-within 5.8G	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz			Working Channel: 1 of 24
	G2-Beyond 5.8G	CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
	G3-Within 5.8G	CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz
Antenna		External antenna
RF OUTPUT POWER		25mW
TRANSMISSION RANGE		100 meters
SENSOR DIMENSION		NTSC:720(H) x 480(V)		PAL:720(H) x 576(V)
HORIZONTAL RESOLUTION		480TV Lines
SENSITIVITY		0.008Lux/F1.2
LENS & VIEW ANGLE		0.5mm F1.2 / 90 °

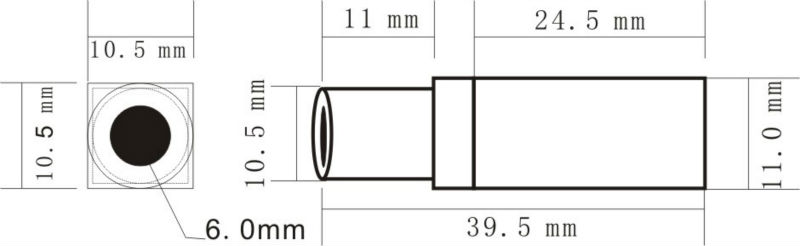

SIZE(L x W x H)		39.5mm x 10.5mm x 10.5mm
WEIGHT(g)		8g
WORK CURRENT		230mA
POWER REQUIREMENT			DC 4V
OPERATING TEMPERATURE			- 20°C ~ + 50°C ,Relative humidity 85%

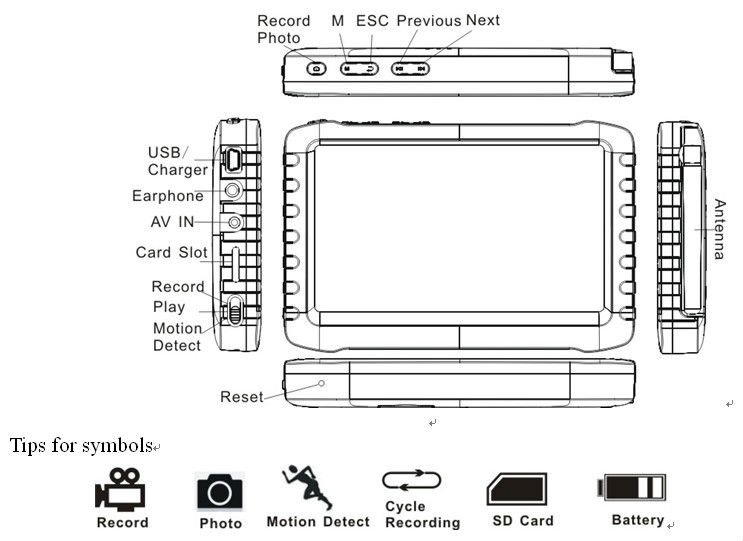

Wireless DVR Feature:

*  Mini size and portable recorder with fashionable & new design;
*  5-inch super large HD screen (800X480pix), which provides clear and smooth image;
*  Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
*  Supports storage up to 32G TF card, which records up to 32 hours;
*  8 channels auto/manual switch;
*  Folding hidden external antenna assures excellent wireless receiving;
*  Supports AV IN function: receiving signal from wired cameras;
*  Photo function: it can take, review & store pictures;
*  Supports intelligent motion detect video recording;
*  Overwrite: It supports loop recording, which can automatically overwrite   when storage is full;
*  Seamless continuous record:No intermittent recording, it will not miss any  detail and wonderfulness;
*  Support power-saving mode: automatic shutdown, automatic off-screen;
*  Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
*  It’s of high compatibility, which supports almost all computer operating system, including MAC;
*  Supports multi-language.

Wireless DVR Receiver Specification:

Items		Value
Wireless Receiving	Within 5.8G-A (8 channels)	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
		CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
	Within 5.8G-B (8 channels)	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz.
		CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
	Beyond 5.8G-C (8 channels)	CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz.
		CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz
	Sensitivity	-92dB
	Receiving distance	100 meters
AV IN	TV system	NTSC / PAL
	Output voltage	3.6-4.2 V
HD 5-inch LCD screen	Active area	108mm(W) X 64.8mm(H)
	Resolution	800 X 480 Pixel
	Luminance for LCM	200 cd/M2
Cape clear 5-inch LCD screen	Active area	118mm(W) X 62.8mm(H)
	Resolution	480 X 272 Pixel
	Luminance for LCM	300cd/M2
Video	Resolution	720*576 / 640*480
	Video compress	MPEG-AVI 30fps
	Play format	MPEG-AVI
Audio	Frequency	20HZ-20KHz stereo
	Earphone Output	Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker	1W
Photo	Format	JPG/JPEG
Storage	External SD card	TF card 1GB-32GB(optional)
	32GB recording time	10-32 hours
	1GB photos	15625pcs
Operating system	PC	Windows & Mac OS
	Port	USB 2.0
	Language	Multiple
Power	Voltage	DC 5V
	Current(receiving mode)	660MA
	Current( recording mode)	680MA
	Current(recording with off-screen mode)	340MA
	AC adapter	DC 5V 2A
	Built-in battery	Li-battery 3200mAh
Standby time	Wireless record	>=9.5 hours(off-screen);>=5hours(on-screen)
	Wired record	>=12 hous(off-screen);>=6hours(on-screen) *LED camera not included.
Size (L x W x H)		131mm x 86mm x 18mm
Weight(g)		205g

Package :

* DVR * 1pcs
* Camera * 1pcs
* User Manual * 1pcs
* Stereo earphone * 1pcs
* USB Cable * 1pcs
* AC Adapter * 1pcs
* Back holder for installation * 1pcs





All products Warranty

• Brand New!
• Full 1 year replacement warranty & 30 days money back guarantee!
• This product is helpful for you and your home safety and saving your money
