Main Features:
* 90 degree wide view angle,3.6-24v wide voltage

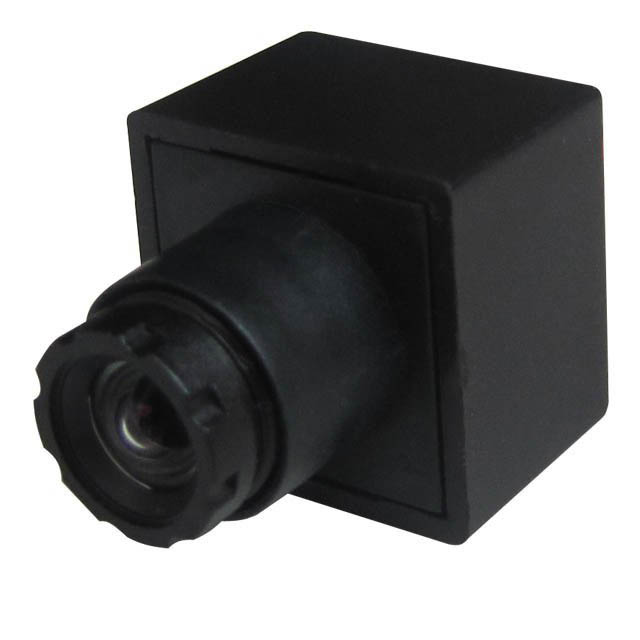

* Small Size: easy to install into narrow room and slim tube, etc.;
* Easy Installation: Simply place it at any desktop with its detachable base station, or screw it on the wall with the detachable stand;

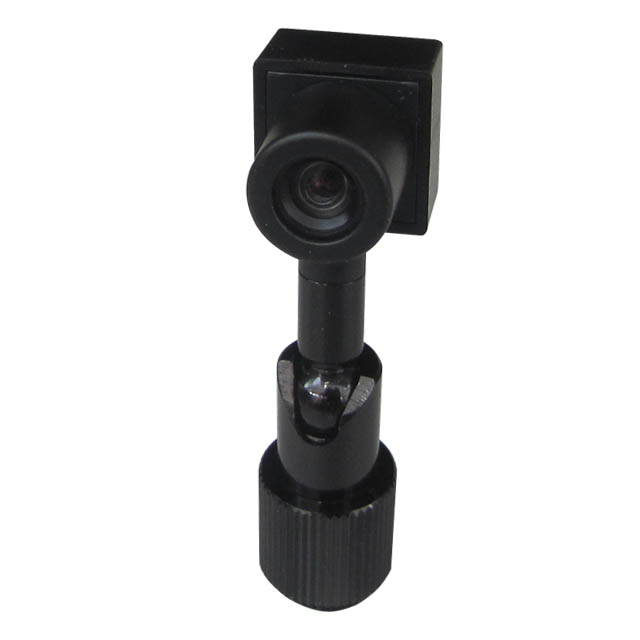

* Camera stand can rotate 360 degrees, all-round monitoring
* High resolution, high sensitivity, high SNR;
* Day & night dual mode auto switch;
* Low Illumination, Low Current and power consumption;
* CMOS sensor generation IV+DSP chip offer true color & HD video.
Usage:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.
Specifications:
| PICK UP ELEMENT |
Single chip 1/4CMOS |
| SYSTEM |
NTSC |
PAL |
| NUMBER OF PIXEL |
NTSC:720(H)¡Á480(V) |
PAL:720(H)¡Á576(V) |
| SENSOR DIMENSION |
3.584mm(H)¡Á2.688mm(V) |
| HORIZONTAL RESOLUTION |
Approximately 480TV Lines |
| SENSITIVITY |
0.05Lux/F1.2 |
| LENS & VIEW ANGLE |
F1.2 / 90¡ã |
| S/N RATIO |
48dB |
| AUTO GAIN CONTROL |
OUT |
| WHITE BALANCE CONTROL |
OUT |
| BACK LIGHT COMPENSATION |
OUT |
| VIDEO OUT |
1.0V p-p/75ohm |
| WEIGHT |
5G |
| SIZE(LXWXH) |
15.5X15.5X20mm |
| WORK CURRENT |
DC12V: 45mA DC5V: 95mA |
| POWER REQUIREMENT |
DC:3.6V-24V |
| OPERATING TEMPERATURE |
- 10¡ã C ~ +50¡ãC ,less than 90% RH |
| Connection |
PIN1=>:Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT |

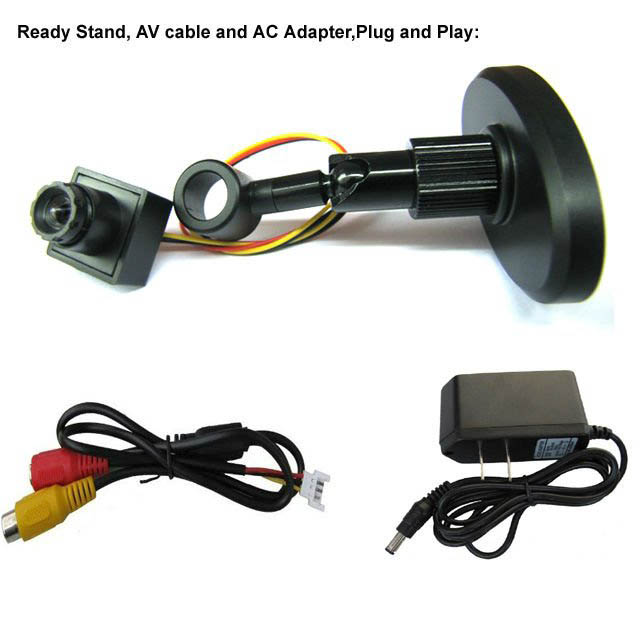

Package contents :
* mini camerax1
* Stand x 1
* RCA or BNC Cable x1
* AC Adapterx1
All products Warranty
- Brand New!
- Full 1 year replacement warranty & 30 days money back guarantee!
- This product is helpful for you and your home safety and saving your money
|
