Main Features:

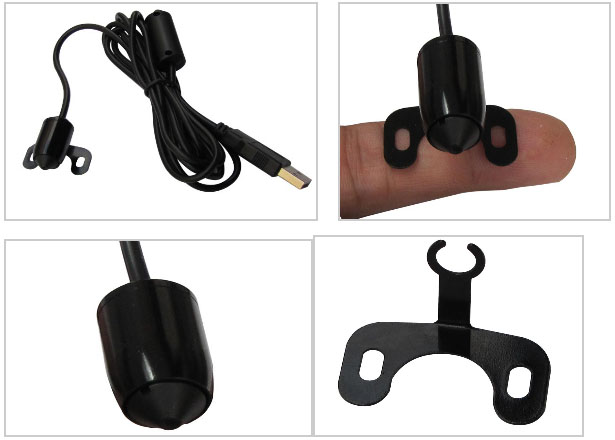

1. Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
2. Wireless transmission,not limited by cable.Very convenient to put it anywhere.Just plug & play.
3. High resolution(786X576pix;520TVL), high sensitivity, high SNR;
4. Day & night dual mode auto switch and continuous working;Low Illumination(0.008lux), high quality video record function;
5. Wide view angle(90 degree);
6. Strong output power brings long transmission range up to 150m(L.O.S.)
7. Convenient power supply and continuous working.
8.Encrypted frequency(2.3G) available to avoid interference from Wifi equipments,WLAN network, bluetooth equipments;and other general 2.4GHz equipments can't receive your signal,protect privacy well.
Usage:

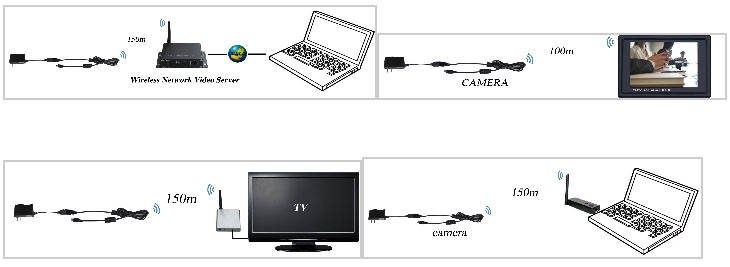

Just plug it to USB port of AC adapter,computer,camera starts to work.And at the same time, you can use any 2.4GHz wireless receivers (like web video server, wireless DVR/ AV receiver/ USB receiver) to receive and record real time video and audio.8 channels available for your choice.
Package Content:
1) 520TVL Wireless Bullet Camera X 1PC;
2) AC Adapter X 1 PC;
3) User manual X1 PC Specifications:
| Frequency |
2.4G |
2414Mhz(CH1) 2432MHz(CH2) 2450MHz(CH3) 2468MHz(CH4) |
Working channel:1 of 8 |
| 2.3G |
2370Mhz(CH1) 2390MHz(CH2) 2490MHz(CH3) 2510MHz(CH4) |
| Audio Subcarrier Frequency |
6.0Mhz |
| Antenna |
2.4GHz built-in antenna |
| RF Output Power |
100mW |
| Transmission Range |
150 meters |
| Total Pixels |
NTSC:656(H)×492(V) |
PAL:786(H)×576(V) |
| Horizontal Resolution |
520TV Lines |
| Minimum Illumination |
0.008Lux/F1.2 |
| Lens & View angle |
90 ° |
| S/N Ratio |
﹥48dB |
| Size (L) |
1.8m {lens size (L x D)：27mm X 15mm } |
| Net Weight（g） |
50g |
| Current |
160mA |
| Voltage |
DC 5V |
| Operation Temperature |
- 20°C ~ + 50°C ，Relative Humidity:85﹪ |
