Key Feature£º
* Portable tester with3.5 inch TFT display(video input and out put)
* Auto identity NTSC/PAL
* Power-saving mode can display in a standby state
* Small appearance, highly integrated and practical
* Audio test function, built-in 0.5 speaker, support for audio input / output
* Support DC12V output, charging for camera.
* Built-in rechargeable battery DC3.7V/2200mAh, Automatic charging function
* Power supply: Battery-powered, computer USB port power supply, DC5V/2Aadapter power supply
* Particularly suitable for project installation of the camera effects, the lens range, the lens view angle, etc. adjust positioning, saves time and effort, convenience
Battery features:
Standard Capacity: 2200mAh
Standard Voltage: 3.7V
Maximum charge voltage: 4.25V
Specification
|
| input voltage |
5V¡À10% 2A(electric current) |
| battery |
DC3.7V£¨2200mAh£©(Rechargeable lithium battery) |
| Video signal formats |
NTSC/PAL(auto-identity) |
| Video output mode |
1.0Vp-p(Full) |
| louder speaker |
8¦¸/0.5w |
| charge time |
5-6hours |
| power output |
12V/350mA |
| working temperature |
-20¡æ¡«+60¡æ |
| Packing dimension |
L185mm*W145mm*H80mm |
| Weight |
N.W: 163g G.W: 595g |

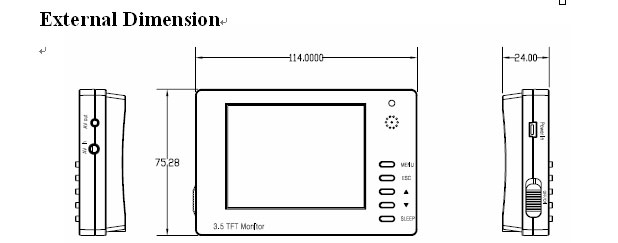

External Dimension:
All products Warranty
- Brand New!
- Full 1 year replacement warranty & 30 days money back guarantee!
- This product is helpful for you and your home safety and saving your money
|
