Specifications:
1) 5" indoor high speed dome camera
2) 1 year warranty
3) 1/4" SONY SUPER HAD CCD
4) CE, FCC etc
5) life time maintainance
Key Feature:
* 1.Fast installation design, install easily and quickly. Aluminum design and polishing shell with oxidation silver. Elegant shape. Black inner shell to monitor easily.
* 2.Built in OSD menu and support inputting with Chinese or English; Display or set parameter via menu.
* 3.Auto-identify various SONY, HITACHI, LG, CNB, SAMSUNG, YOKO, etc, and auto read camera model when power on.
* 4.The first designer of wide voltage in domestic, DC12V~AC24V, no need to identify ˇ°+ˇ± or ˇ°-ˇ±.
* 5.Soft address design can alter long-distance ID address code, no need manual dial-up.
* 6.Show and Edit title function containing 20 English letter, can independently set the titles for camera itself Preset Position, Patten Scan, Auto-level Scan and Zone display.
* 7.Auto flip with vertical 180ˇă in omni-directions, no fade zone
* 8.200 preset positions and titles can be set.
* 9.4 patrol tracking routes, every can insert 32 spots
* 10.4 patterns scan routes and continuous track record of 1000 in action, time of up to 10 minutesŁ»
* 11.4 auto level scan routes with left & right spacing. Speed can be set.
* 12.Position-indicating function, temperature indicator function (Celsius / Fahrenheit simultaneous display), information display, information inquiry functionŁ»
* 13.8 dynamic privacy zone can be setup.
* 14.8 display zones with editable title.
* 15.Alarm system with 4input and 2 output channel and support the linkage ( recall preset and various of scan mode. Tracking. Pattern. Auto-level scan)
* 16.Auto activation at fixed time, and can auto execute different scans and presets after a given leisure time.
* 17.RS485 control, integrated various protocols, PELCO-D, PELCO-P, KALATEL, AD, PHILIPS, SAE, VCL etc.
* 18.Built-in temperature-controlled heating system and the speed fan
* 19.3 class lightning defend, built in 3000V lightning proof, surge resistant.
* 20.IP 66 outer cover with all day protection.
External Dimension:
| Power input: |
DC12V~AC24V (ˇŔ10%) |
| Power consumption: |
IndoorˇÜ12W |
| Image sensor: |
1/4 inch SONY SUPER HAD CCD |
| Signal mode: |
PAL/NTSC |
| Preset position: |
200 presets, title settable |
| Accuracy: |
ˇŔ0.1º |
| Pan rotation range: |
360ˇăContinuous Rotation, 0.5ˇă-240ˇă/S |
| Tilt rotation range: |
90ˇăVertical, 180ˇăAuto flip, 0.5ˇă-220ˇă/S |
| Control method: |
RS485/Mancherster/BI-PHASE code |
| Protocol: |
Pelco-P/D,AD,PHILIPS etc |
| Working temperature: |
Indoor: 0ºC ~ 50ºC |
| Ambient humidity: |
0-95%Non-condensing |
| Shell material: |
Aluminum |

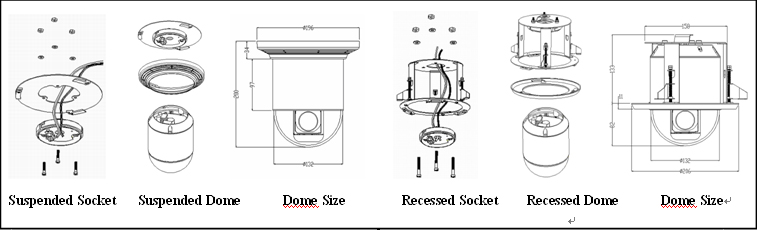

| Installation: |
In-ceiling, Surface |
All products Warranty
- Brand New!
- Full 1 year replacement warranty & 30 days money back guarantee!
- This product is helpful for you and your home safety and saving your money
|
