Functions: Wirelessly receive audio & video signal from 2.4GHz wireless cameras, and display on TV/monitor/MP4/DVR,etc.
Features: * Standard AV output for TV set, MP4, DVR, etc. * 2 frequency modes (2.3G & 2.4G) and 8 channels available to avoid interference from Wifi/bluetooth equipments, WLAN network,other 2.4GHz equipments. * Small size (69 x 68 x 16 mm) & super light (80g only).

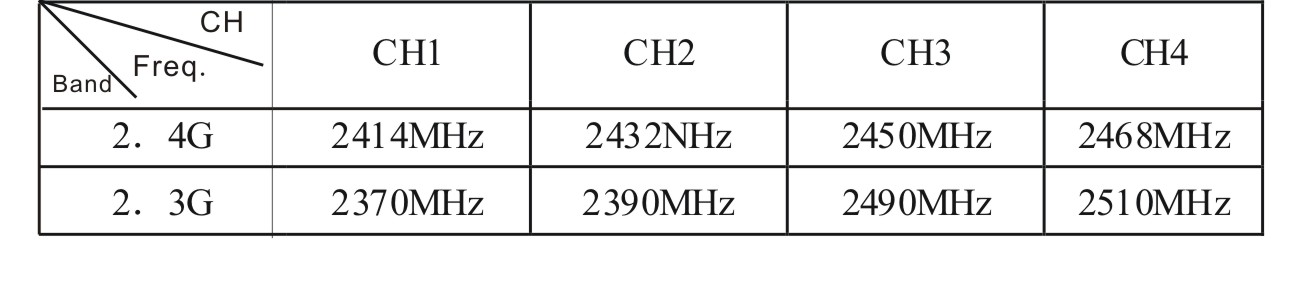

Relationship between working frequency and channel mode

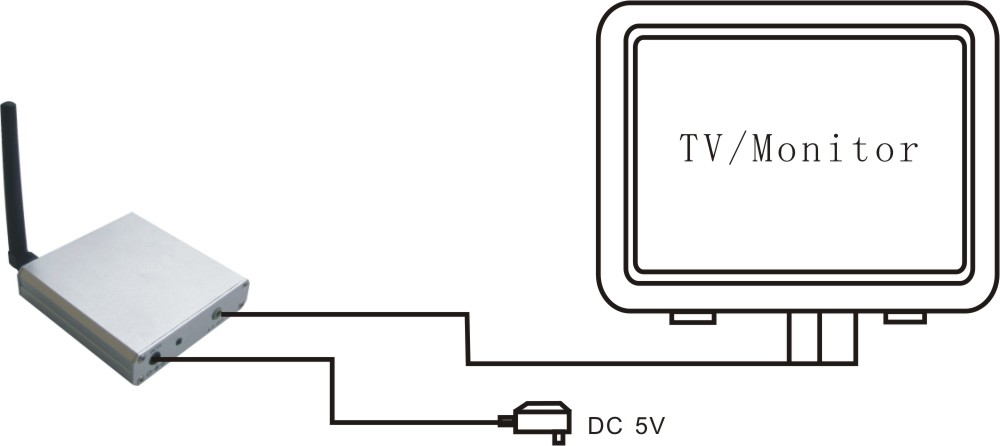

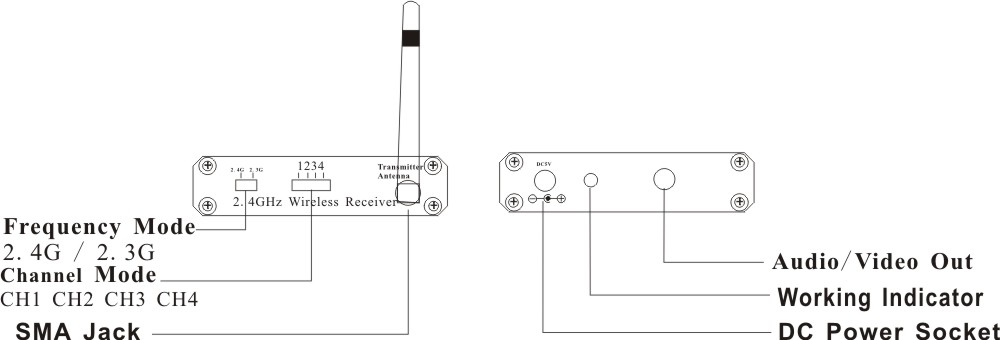

Diagram:
Package Includes:
Specification:
Receiving Frequency |
ISM 2,360MHz~2,520MHz |
Audio subcarrier frequency |
6.0Mhz |
Demodulation Type |
FM |
Antenna |
50ohm SMA |
Receiving Sensitivity |
¡Ü -85dBm |
Video Output Level |
1Vp-p@75ohm, S/N>38dB |
Audio Output Level |
1Vp-p@1Kohm |
Power Supply |
+5VDC |
Consumption Current |
180mA |
Dimensions(W*L*H) |
68*69*16(mm)(Excluding antenna) |
Weight |
80g |
Operating Temperature |
10 C~+50 C/+14 F~+122 F |
Operating Humidity |
85%RH |
Package:
1* AC adapter 1* AV cable
All products Warranty
- Brand New!
- Full 1 year replacement warranty & 30 days money back guarantee!
- This product is helpful for you and your home safety and saving your money
|
