Mini Hidden IP Camera remotely view and record the real time video and audio

Mini Hidden IP Camera remotely view and record the real time video and audio






Condition:New
Model:SPYIPAV
Salecode: SPYNC6201
List Price:

Your price:




This mini hidden IP camera comes with a very small size wired house camera. It's 11.5X11.5X17mm only. You can hide it easily to any place you want.At the other side, you can remotely view and record the real time video & audio from camera on a computer or smartphone via Internet Browser.The camera can be completely invisible! Very Safe and sutiable for continuous & remote servurillance of home,offices,shops,pubs and restaurants, buildings, warehouses,etc.




Selling points:
1.Mini hidden IP camera is more safe & practical than traditional big and showy IP camera.
2. Best choice for remote  & continuous surveillance of home,offices, shops,Pubs and Restaurants, Building Sites, Warehouses,etc.
3.Very clear video with high definition up to 786X576 pix,  520TVL.
4.Work day & night: Excellent night vision with low illumination to 0.008lux.
5.Very small size camera with house, very easy for installation.

Specification:

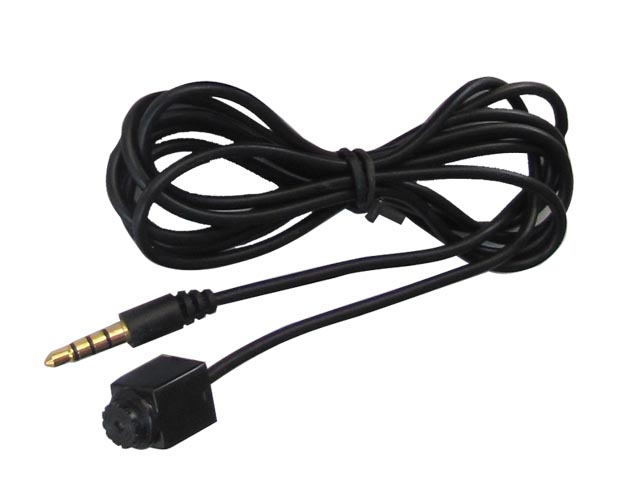

1.  Mini CCTV Camera




Cable length 1.5m; 50~100m for optional purchase,USD0.5/m.

PICK UP ELEMENT

Single chip 1/3 CMOS

SYSTEM

NTSC

PAL

NUMBER OF PIXEL

NTSC:656(H)¡Á492(V)

PAL:786(H)¡Á576(V)

IMAGE SIGNAL PROCESS

Digital Signal Processing System

SENSOR DIMENSION

4.75mm(H)¡Á3.55mm(V)

HORIZONTAL RESOLUTION

Approximately 520TV Lines

SCANNING SYSTEM

2£º1 Interlace

SENSITIVITY

0.008Lux/F1.2

LENS & VIEW ANGLE

0.5mm F2.0 /55 ¡ã

S/N RATIO

52dB

ELECTRONIC SHUTTER

OUT (1/60 S TO 1/100000 S)

OUT (1/50 S TO 1/100000)S

AUTO GAIN CONTROL

OUT

WHITE BALANCE CONTROL

OUT

BACK LIGHT COMPENSATION

OUT

VIDEO OUT

1.0V p-p/75ohm

AUDIO OUT

1.0V p-p/1Kohm

SIZE (L x W x H)

11.5mm x 11.5mmM x 17mm

WEIGHT

2g

WORK CURRENT

72mA

POWER REQUIREMENT

DC 3.3V-6V

OPERATING TEMPERATURE

- 10¡ã C ~ +50¡ãC ,less than 90% RH

Connection

PIN1-Red DC5V PIN2-Black GND PIN3-Yellow VIDEO OUT PIN4-white AUDIO OUT

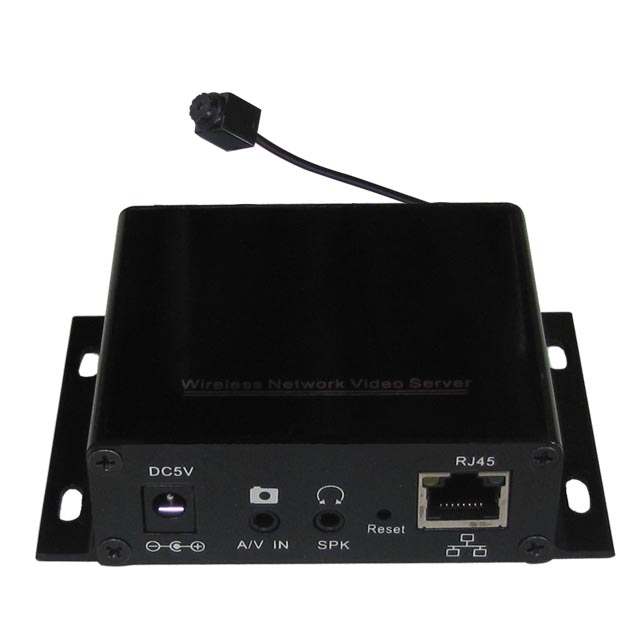

2. Wireless Network Video Server

Mini Hidden IP Camera remotely view and record the real time video and audio Mini Hidden IP Camera remotely view and record the real time video and audio camera
Frontview                         Backview

2.4GHz Wireless Receiving
Receiving Frequency ISM 2,360MHz~2,520MHz
Audio subcarrier frequency Default£º6.0Mhz Optional:6.5MHz
Channel Support 8 channels
Receiving Sensitivity ¡Ü -85dBm
Antenna 50ohm SMA
AV INPUT
Video Input Level 1Vp-p@75ohm
Audio Input Level 1Vp-p@1Kohm
Power Supply output DC5V
Compression standard
Video frequency compression standard H.264/MJPEG
Compression output code rate 32K¡«4Mbps/1M¡«16Mbps
Audio frequency compression standard G.711
Audio frequency output code rate 64Kbps
Image size 704*576;704*288;352*288; 176*144 ;704*480;704*240;352*240
Frame Rate 1-30f/s
Function
2.4GHz wireless receiving Support
AV input of wired camera Support
Mobile phone monitoring Support
Network protocol PPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,FTP,SIP,DDNS,DNS
Motion detection Support
Area shield Support
SD Card local storage Support

With WIFI for optional (it is optional to use high power WIFI module)
Support encryption: wep64,wep128,wpa,wpa2
Wireless power: 13dbm(54M) (high power module, wireless power: 20dbm/54M)
Wireless distance: <=70m (high power module<=300M)
General specifications
Working temperature -10¡æ¡«65¡æ
Working humidity 85%RH or less
Power source DC5V/1A
Power consumption <3W
Size (LXWXH) 7.5cm(L)x 10.5cm(W) x 2.9cm(H)
Weight 180g





Package:
1 * Wireless Network Video Server
1 * mini camera
1 * adapter
1 * cd

All products Warranty

  • Brand New!
  • Full 1 year replacement warranty & 30 days money back guarantee!
  • This product is helpful for you and your home safety and saving your money
