Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Main Features:
* Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
* Light Weight: easy install without causing unnecessary damage on object surface;
* High resolution, high sensitivity, high SNR;
* Day & night dual mode auto switch;
* Wide view angle(90 degree );
* Low Illumination, high quality video record function;
* Low Current and power consumption;
* CMOS sensor generation IV+DSP chip offer true color & HD video.
Specifications:
| PICK UP ELEMENT |
Single chip 1/3 CMOS |
| SYSTEM |
NTSC |
PAL |
| NUMBER OF PIXEL |
NTSC:656(H)¡Á492(V) |
PAL:786(H)¡Á576(V) |
| SENSOR DIMENSION |
4.75mm(H)¡Á3.55mm(V) |
| HORIZONTAL RESOLUTION |
Approximately 520TV Lines |
| SCANNING SYSTEM |
2:1 Interlace |
| SENSITIVITY |
0.008Lux/F1.2 |
| LENS & VIEW ANGLE |
0.5mm F2.0 : 90 ¡ã |
| S/N RATIO |
48dB |
| ELECTRONIC SHUTTER |
OUT (1/60 S TO 1/100000 S) |
OUT (1/50 S TO 1/100000)S |
| AUTO GAIN CONTROL |
OUT |
| WHITE BALANCE CONTROL |
OUT |
| BACK LIGHT COMPENSATION |
OUT |
| VIDEO OUT |
1.0V p-p/75ohm |
| AUDIO OUT |
1.0V p-p/1Kohm (only MC908A / MC908-12 / MC908AE) |
| SIZE (L x D ) |
27.5mm x 15.0mm |
| WEIGHT |
8g |
| WORK CURRENT |
DC5V: 70mA DC12V: 40mA |
| POWER REQUIREMENT |
DC 5V/12V |
| OPERATING TEMPERATURE |
- 10¡ã C ~ +50¡ãC £¬less than 90% RH |
| Connection |
PIN1=>Red Power supply PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=> White AUDIO OUT |

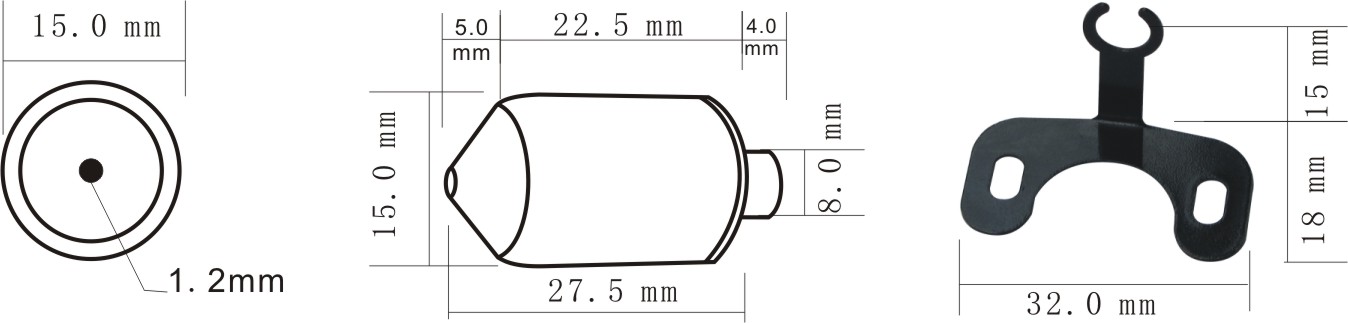

Outline Size:
Package:
Mini camera X1;
RCA or BNC cableX1;
AC adapter X1
All products Warranty
- Brand New!
- Full 1 year replacement warranty & 30 days money back guarantee!
- This product is helpful for you and your home safety and saving your money
|
